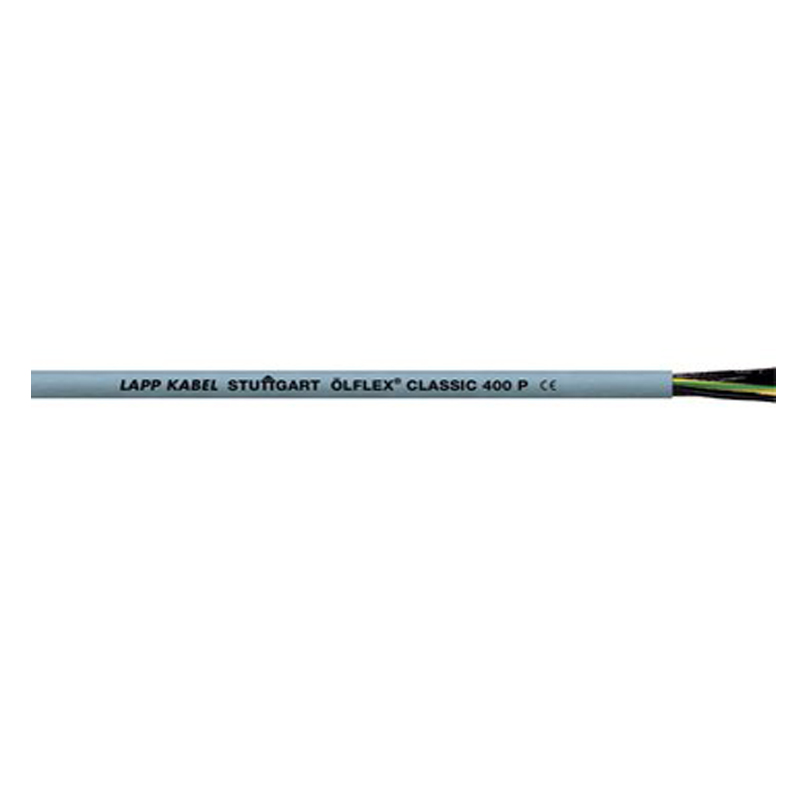

Olflex 400P | YY Control Flex Cables| PVC-PUR

Lapp ÖLFLEX®  Abrasion-resistant control cables with PUR sheath for increased application requirements
Increased durability under harsh conditions thanks to robust PUR outer sheath
Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media





SKU: 400P Categories: , , , Tags: , , , , , , ,
Click to request data sheet

Description

YY Control Flex Cables |  ÖLFLEX® 400P Technical Data
Core identification code: Black with white numbers acc. to VDE 0293
Based on: Based on VDE 0281 und 0282
Conductor stranding: Fine wire according to VDE 0295,class 5/IEC 60228 class 5
Minimum bending radius: Flexible use: 12.5 x outer diameter
Fixed installation: 4 x outer diameter
Nominal voltage: U0/U: 300/500 V
Test voltage: 4000 V
Protective conductor: G = with GN-YE protective conductor
X = without protective conductor
Temperature range: Occasional flexing: -5°C to +70°C
Fixed installation: -40°C to +80°C

If you require the Screened Version of the cable click HERE

Additional information

Cores

2, 3, 4, 5, 7, 12, 18, 25, 34
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16
Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
