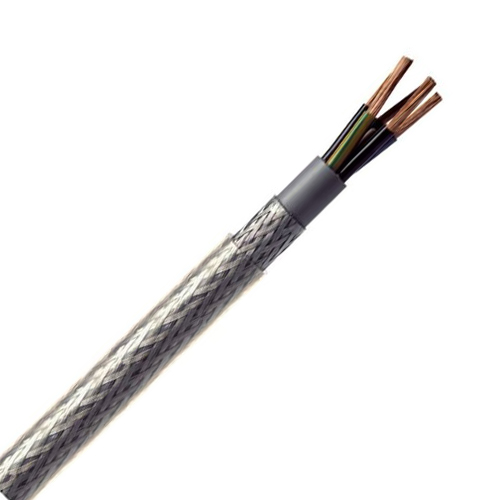

SY Control Flex Cable

SY Control Flex Cables Application range
Product Make-up
Fine-wire strand made of bare copper wires
PVC insulation
Cores twisted in layers
PVC inner sheath, grey
Braid of galvanized steel wires
PVC sheath, transparent

Categories: , , , Tags: , , , , ,
Click to request data sheet

Description

SY Control Flex Cables Application range

Plant engineering , Industrial machinery,Heating and air-conditioning systems
Areas with increased requirements regarding mechanical stress
For fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load

Product Make-up

Fine-wire strand made of bare copper wires
PVC insulation
Cores twisted in layers
PVC inner sheath, grey
Braid of galvanized steel wires
PVC sheath, transparent

If you are looking for an extended range of these SY Cables then Click HERE

Additional information

Cores

3, 4, 5, 7, 12, 18
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6
Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us

Related products

  • YY Control Flex Cables , KU500

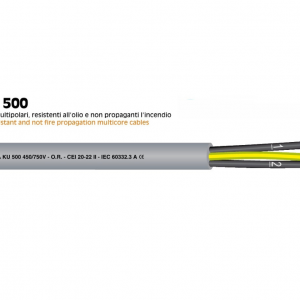

    YY Control Flex Cable – KU500 – PVC/PVC
