YY High Flex Dynamic Cable PVC | Olflex FD810

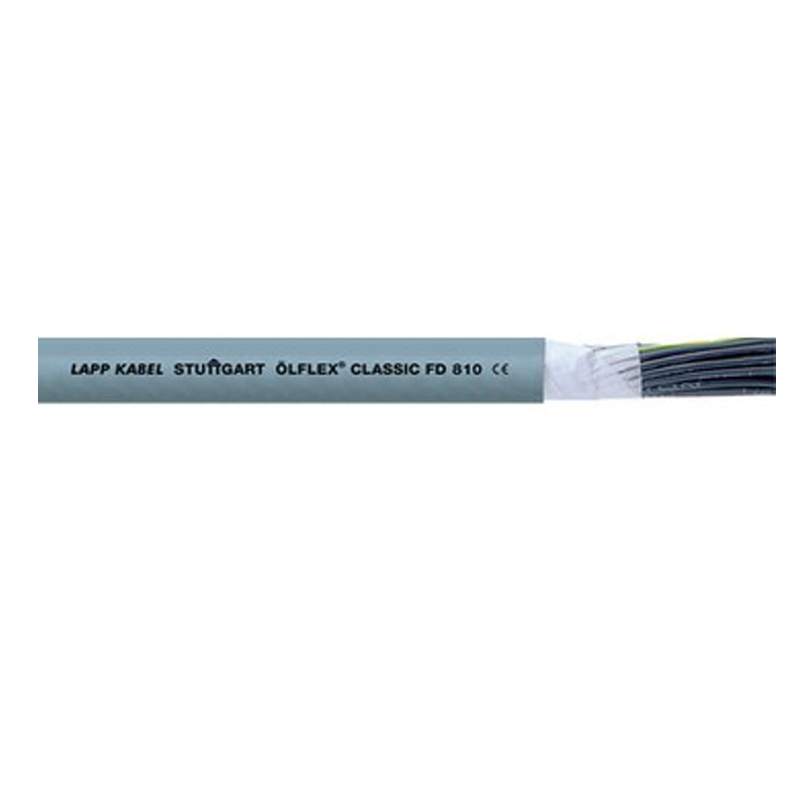

ÖLFLEX® CLASSIC FD 810 – power and control cable for versatile use in power chains.
Highly flexible control cable with PVC core insulation and PVC sheath
Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)

Categories: , , , , Tags: , , , , , , , , ,
Click to request data sheet

Description

YY High Flex Dynamic Cables PVC | ÖLFLEX®  FD810 Benefits

Tried-and-tested and reliable
Cost-effective solution
Low particle emission at moved chain application

Application range

In power chains or moving machine parts
Suitable for use in measuring, control and regulating circuits
Assembly lines, production lines, in all kinds of machines
In damp or wet interiors
Only for outdoor use within the indicated operating temperature range, with UV-protection

Product features

Designed for 5 million alternating bending cycles and travel distances up to 10 metres
Flame-retardant according IEC 60332-1-2
Low-adhesive surface

Norm references / Approvals

Core based on VDE 0245/0285
Sheath based on VDE 0245/0285
Clean room classification for individual items on request
For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in layers with short lay lengths
Non-woven wrapping
PVC outer sheath, grey (RAL 7001)

If you are looking for the Screened version of this cable then click HERE

Additional information

Cores

2, 3, 4, 5, 7, 12, 18, 25, 34, 50
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16
Real Size

Per Meter, 50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
