Showing 1–12 of 13 results

  • CY High Flex Dynamic Cable | Olflex FD810CY | PVC

    Highly flexible, shielded control cable with PVC core insulation and PVC inner and outer sheath
    ÖLFLEX® CLASSIC FD 810 CY – shielded power and control cable for versatile use in power chains.
    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in layers with short lay lengths
    PVC inner sheath, grey
    Tinned-copper braiding
    Non-woven wrapping
    PVC outer sheath, grey (RAL 7001)

  • CY High Flex Dynamic Cable PUR | Olflex FD810 CP

    Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
    ÖLFLEX® CLASSIC FD 810 CP – power and control cable for use in power chains in harsh environmental conditions in EMC critical areas.

    Extra-fine wire strand made of bare copper wires (class 6)
    Core insulation: PVC
    Cores twisted in short lay lengths
    Fleece wrapping
    PVC inner sheath
    Tin-plated copper braiding
    Polyurethane sheath, grey (RAL 7001)

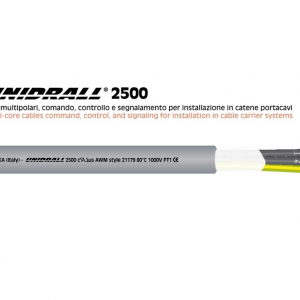

  • Unidrall 2500 - HIgh flex dynamic cables ul approved

    High Flex Cable – Unidrall 2500 – TPE/PVC

    High Flex Cable -Unidrall 2500 -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

    • The cables in this series have high flexibility, making them suitable for installation in cable carrier systems
    • Dynamic High Flex 10 Million Cycles
    • 6 x Cable OD bend radius
    • 1000V rated -5 + 80 Degree rated
    • UL / cUL / CE / Desina Approval

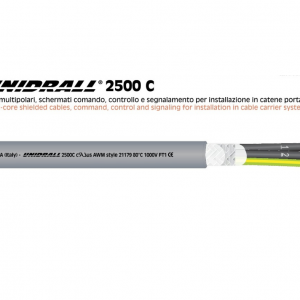

  • Unidrall 2500C - Drag Chain Cables

    High Flex Cable – Unidrall 2500C – TPE/PVC Screened

    High Flex Cable -Unidrall 2500C -UL/cUL/Ce Desina Approved – UL21179 – 1000V -5°/+ 80°C – TPE / PVC

    • The cables in this series have high flexibility, making them suitable for installation in cable carrier systems
    • Dynamic High Flex 10 Million Cycles
    • TCWB Screen
    • 6 x Cable OD bend radius
    • 1000V rated -5 + 80 Degree rated
    • UL / cUL / CE / Desina Approval

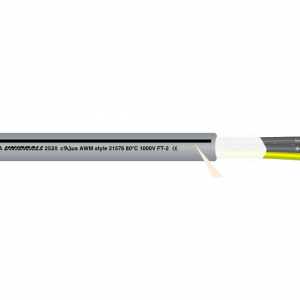

  • Unidrall 2520 - High performance drag chain cables

    High Flex Cable – Unidrall 2520 – TPE/PUR

    High Flex Cable – Unidrall 2520 – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE-E / PUR

    • Superior Performance Drag Chain Cable
    • Innovative addition of a longitudinal black line
    • TPE/PUR – 1000V -30/+80 Degree
    • UL cUL Ce & Desina Approved
    • 15 Million Cycles
    • 5 x Cable OD Bend Radius

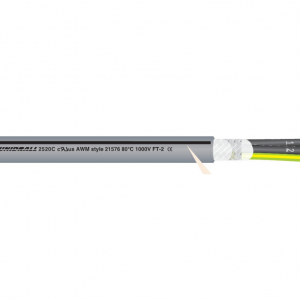

  • Unidrall 2520C - High Performance drag chain cable

    High Flex Cable – Unidrall 2520C – TPE/PUR Screened

    High Flex Cable – Unidrall 2520C – UL/cUL/Ce Approved – UL21576 – 1000V -30°/+ 80°C – TPE-E / PUR

    • Superior Performance Drag Chain Cable
    • Innovative addition of a longitudinal black line
    • TPE/PUR – 1000V -30/+80 Degree
    • TCWB Screen
    • UL cUL Ce & Desina Approved
    • 15 Million Cycles
    • 6 x Cable OD Bend Radius

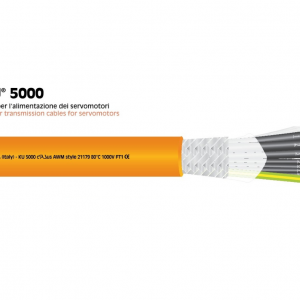

  • KU5000 - Static servo motor cables

    Servo Cables – KU 5000 – TPE / PVC – Fixed

    Servo Cable KU 5000 -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -30°/+80°C – TPE/ PVC

    • These KU 5000 servo cables are suitable for controlling servo motors used in tooling machines
    • TPE / PVC
    • Suitable for Static Applications
    • 1000V Rated /  -30/+80 Fixed
    • UL cUL style 21179 + Desina Approval
    • Range from 1.5 mm – 50 mm

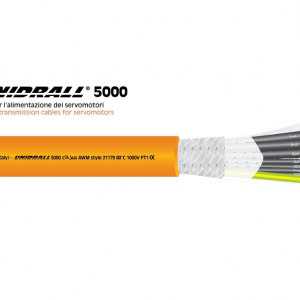

  • Unidrall 5000 - Fixed application servo motor cable

    Servo Cables – Unidrall 5000 – TPE / PVC

    Servo Cable Unidrall 5000 -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -5°/+80°C – TPE/ PVC

    • These Unidrall 5000 servo cables are suitable for controlling servo motors used in tooling machines
    • TPE / PVC
    • Suitable for Dynamic Applications
    • 1000V Rated / -5/+80 Dynamic & -30/+80 Fixed
    • UL cUL style 21179 + Desina Approval
    • Range from 1.5 mm – 50 mm

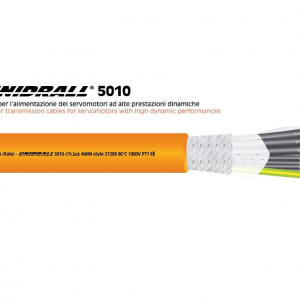

  • UNIDRALL 5100 - High performance Servo cable

    Servo Cables – Unidrall 5010 – TPE / PUR

    Servo Cable Unidrall 5010 -UL/cUL/Ce/ Desina Approved – UL21209 – 1000V -50°/+90°C – TPE-E / PUR – High Performance

    • These Unidrall 5010 servo cables are a High Performance Servo Motor cable
    • TPE / PUR
    • Suitable for Drag Chains & High Flex applications
    • 1000V Rated / -50/+90 Dynamic & -50/+90 Fixed
    • UL cUL style 21209 + Desina Approval – ECOLAB – Lloyds Registered
    • Range from 1.5 mm – 50 mm
    • Speed – 300 m/min  / Acceleration 40 m/s / 15 Million Cycles

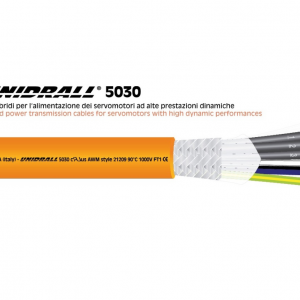

  • Unidrall 5030 - Servo Motor Cables

    Servo Cables – Unidrall 5030 – TPE / PUR

    Servo Cable Unidrall 5030 -UL/cUL/Ce/ Desina Approved – UL21209 – 1000V -50°/+90°C – TPE-E / PUR – High Performance

    • These Unidrall 5030 servo cables are a High Performance Servo Motor cable
    • TPE / PUR
    • Suitable for Drag Chains & High Flex applications
    • 1000V Rated / -30/+90 Dynamic & -50/+90 Fixed
    • UL cUL style 21209
    • Suitable for Bosch , Elau , Sick Hyperface DSL , ENDAT 2.2 B & R , ENDAT 2.2 Heidenhain HMC6 , Schneider ILM62 System

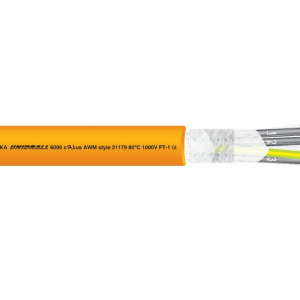

  • Unidrall 6000 - Servo motor drives cable

    Servo Cables – Unidrall 6000 – TPE / PVC

    Servo Cable Unidrall 6000 -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -5°/+80°C – TPE / PVC

    • These Unidrall 6000 servo cables are suitable for controlling servo motors used in tooling machines
    • TPE / PVC
    • Suitable for Drag Chains & High Flex applications
    • 1000V Rated / -5/+80 Dynamic & -30/+80 Fixed
    • UL cUL style 21179 + Desina Approval
    • Range from 1 mm – 50 mm

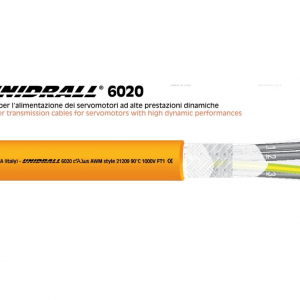

  • Unidrall 6020 - New - High Performance

    Servo Cables – Unidrall 6020 – TPE / PUR

    Servo Cable Unidrall 6020 -UL/cUL/Ce/ Desina Approved – UL21209 – 1000V -50°/+90°C – TPE-E / PUR – High Performance

    • These Unidrall 6020 servo cables are a High Performance Servo Motor cable
    • TPE / PUR
    • Suitable for Drag Chains & High Flex applications
    • 1000V Rated / -50/+90 Dynamic & -50/+90 Fixed
    • UL cUL style 21209 + Desina Approval – ECOLAB – Lloyds Registered
    • Range from 1 mm – 50 mm
    • Speed – 300 m/min  / Acceleration 40 m/s / 15 Million Cycles
