YY Control Flex Cables LSOH / LSOH | Olflex 130 H

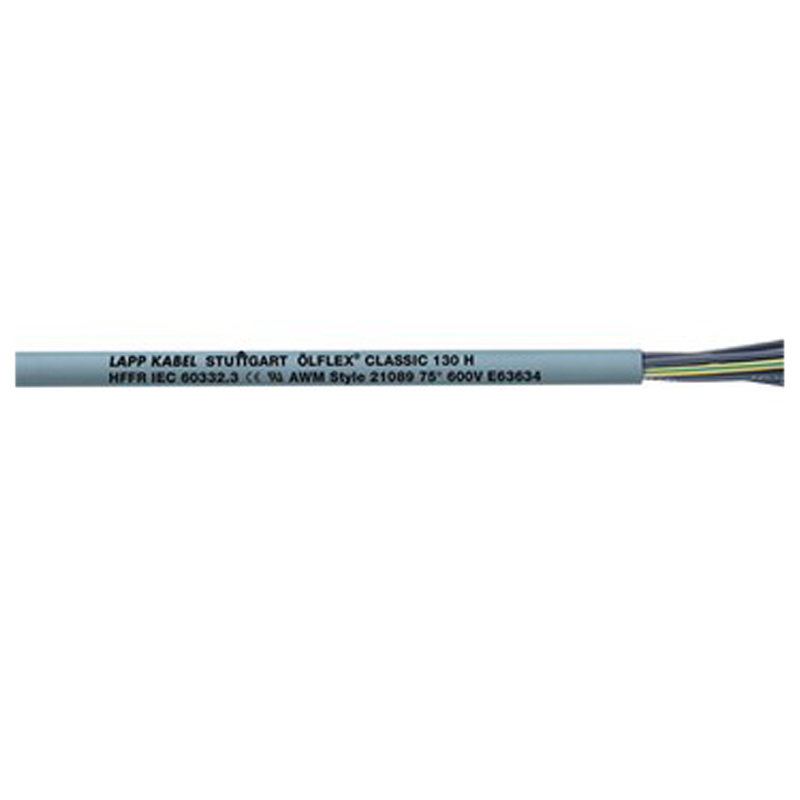

 ÖLFLEX® 130 H
Halogen-free control cable with improved fire characteristics
ÖLFLEX® CLASSIC 130 H – halogen-free control cable, HFFR and flexible for various applications, nominal voltage: 300/500V

VDE-certified
For use within public buildings and industrial plants
New: Extended application range
GL-certified and flexible at temperatures as low as -25°C

Click to request data sheet

Description

ÖLFLEX®  130 H Benefits

Easy installation due to flexible design
Certified for maritime applications

Application range

Public buildings like airports or railway stations
Plant construction, machine building
Heating and air-conditioning systems
Event equipment
Particularly where human and animal life as well as valuable property are exposed to a high risk of fire hazards
Note: for the use of AWM (Appliance Wiring Material) cables in industrial machinery (USA) according to NFPA 79 Ed. 2015: please see the catalogue appendix table T29

Product features

Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable)
No flame propagation according to IEC 60332-3-22 and IEC 60332-3-24 or IEC 60332-3-25 (flame spread on vertical cable or conductor bunch)
Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity)
Low smoke density according to IEC 61034-2
UL Cable Flame Test

Norm references / Approvals

UL AWM style 21089
Based on EN 50525-3-11
Based on EN 50525-2-51
Germanischer Lloyd (GL)
certificate no. 11 120-14 HH

Product Make-up

Fine-wire strand made of bare copper wires
Core insulation: Halogen-free
Cores twisted in layers
Sheath made of special halogen-free compound, grey (RAL 7001)



Additional information

Cores

2, 3, 4, 5, 7, 12, 18, 25, 34

Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16, 25, 35

Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
