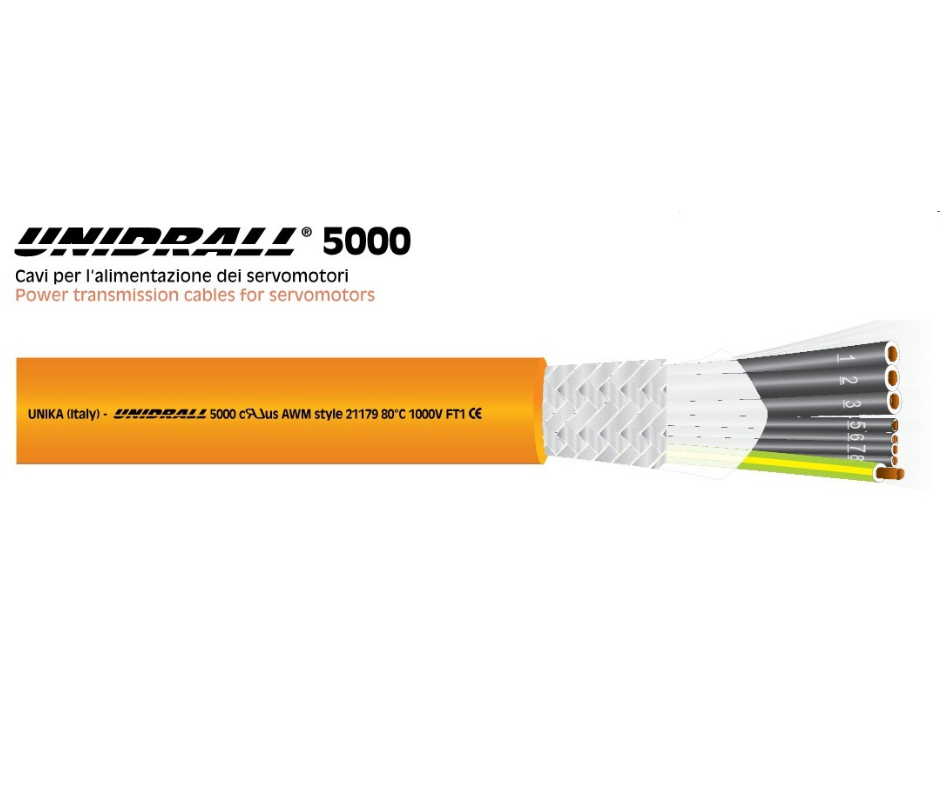

Unidrall 5000 - Fixed application servo motor cable

Servo Cables – Unidrall 5000 – TPE / PVC

Servo Cable Unidrall 5000 -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -5°/+80°C – TPE/ PVC

  • These Unidrall 5000 servo cables are suitable for controlling servo motors used in tooling machines
  • TPE / PVC
  • Suitable for Dynamic Applications
  • 1000V Rated / -5/+80 Dynamic & -30/+80 Fixed
  • UL cUL style 21179 + Desina Approval
  • Range from 1.5 mm – 50 mm
Categories: , , , , Tags: , , , , ,
Click to request data sheet

Description

Servo Cable Unidrall 5000 -UL/cUL/Ce/ Desina Approved – UL21179 – 1000V -5°/+80°C – TPE/ PVC

These cables are used for supplying power to the servo motors of machine tools, in assembly chains, production lines, etc. The shielding of brake and thermal pairs, as well as the total shielding, is optimized to minimize electromagnetic interference.  The cables have UL and CSA approvals. DESINA Approved. UL/CSA approved: 80°C 1000V style 21179.
