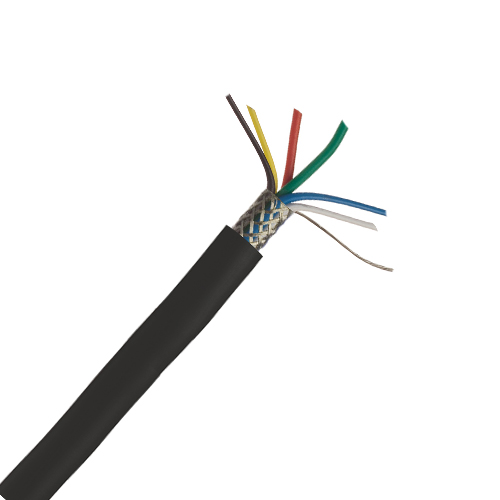

Defence Standard 61-12 Pt4 7-2-* C – Screened Cable

Def Stan 7/0.2 screened cables available in following options:
7-2-2C , 7-2-3C, 7-2-4C , 7-2-6C , 7-2-8C , 7-2-12C ,7-2-12C , 7-2-18C , 7-2-25C , 7-2-36C
Product is supplied on 100 Mtr reels and with Black Sheath Only * Larger reel sizes available on request.

Categories: , , , , , , Tags: , , , , , , , , , , , ,
Click to request data sheet

Description

APPLICATION
Defence Standard Cables – This range of multicore flexible cable is manufactured in accordance with Defence Standard 61-12 , Parts 4 & 5.

The cable is designed for high density wiring in instrumentation and electronic equipment which includes avionic control systems, computers, data processors, process control systems, military vehicles, signaling and telemetry applications. This cable should not be used for direct connection of equipment to mains power supplies

If you require an un-screened version of this cable then click HERE

Additional information

Cores

7-2-2C, 7-2-3C, 7-2-4C, 7-2-6C, 7-2-8C, 7-2-12C, 7-2-18C, 7-2-25C, 7-2-36C
