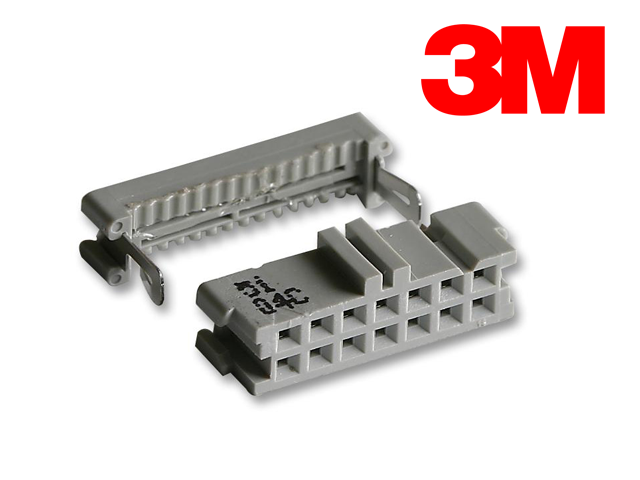

3M – 3385-6600 – 14 Way IDC Connector

3M – 3000 Series
14 Way

Click to request data sheet

Description

This 3385-6600 is a 14-way 0.100 x 0.100-inch Wire mount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wirem ount socket has open end cover, military polarization with center bump and no strain relief. ( strain can be purchased )  Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.

  • Grey colour
  • Availability of pull tab to facilitate proper unplugging
  • Accepts flat cable or discrete wire
  • UL94V-0 Flammability rating
  • 1A Current rating
  • 1 x 10⁹R at 500VDC Insulation resistance

Additional information

Pack Size

10 Pcs, 25 Pcs, 50 Pcs, 100 Pcs
