3M – 4610-6050 – 10 Way Wire to board connector

3M – 4610 -6050
4600 Series Wire to Board connector
10 Way

Category: Tags: , , , , ,
Click to request data sheet

Description

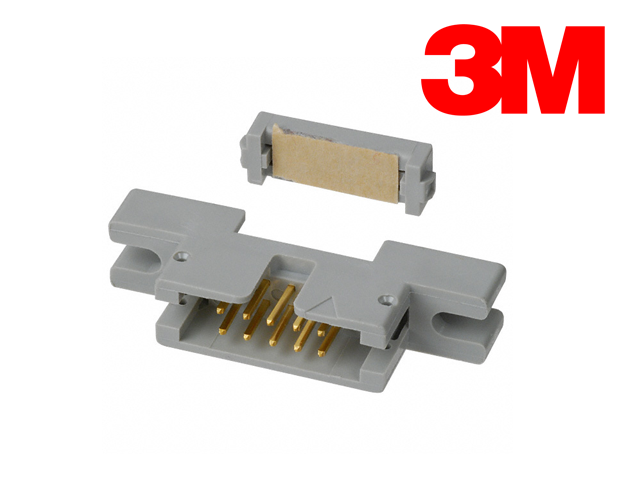

The 4610-6050 from 3M is a 2.54mm pitch, dual row, 10 positions shrouded wire mount plug. Connector is shrouded to protect against physical and chemical pin damage.

  • Open end cover
  • High temperature glass filled polyester PBT insulator
  • Current rating is 1A
  • Temperature rating from -55°C to 105°C
  • Copper alloy with gold plating contacts
  • Accepts flat cable or discrete wire
  • Available with mounting flange
  • Accommodates wire size of 26AWG & 28AWG solid or stranded

Additional information

Pack Size

10 Pcs, 25 Pcs, 50 Pcs, 100 Pcs
