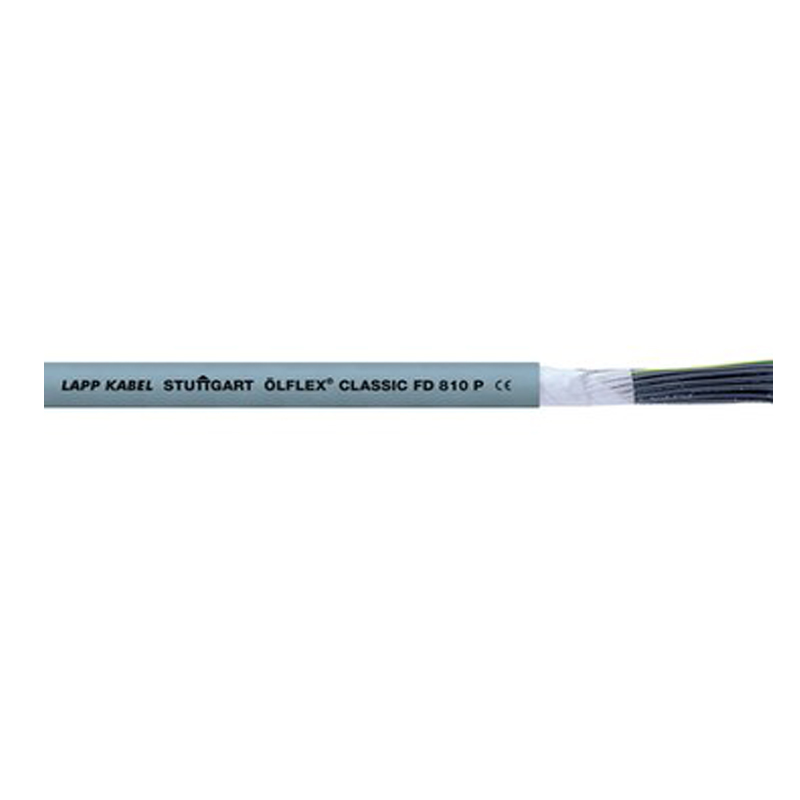

YY High Flex Dynamic Cable PUR | Olflex FD810 P

Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in short lay lengths
Non-woven wrapping
PVC inner sheath
Tinned-copper braiding
PUR outer sheath, grey (RAL 7001)



Categories: , , , , Tags: , , , , , ,
Click to request data sheet

Description

 ÖLFLEX® FD810 P Benefits

Well-proven and reliable
Various applications
Increased durability under harsh conditions thanks to robust PUR outer sheath
Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
Additional robustness thanks to inner sheath
Copper braiding screens the cable against
electromagnetic interference

Application range

In power chains or moving machine parts
Particularly in wet areas of machine tools and transfer lines
Power circuits for electrical equipment used in automation engineering
Suitable for use in measuring, control and regulating circuits
In dry, damp or wet interiors with normal mechanical stress conditions

Product features

Designed for 5 million alternating bending cycles and travel distances up to 10 meter
Flame-retardant (IEC 60332.1.2)
High oil-resistance
Abrasion and notch-resistant
EMC-compliant
Low-adhesive surface

Norm references / Approvals

Core based on VDE 0245/0285
Outer sheath based on VDE 0245/0285
For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

Extra-fine wire strand made of bare copper wires (class 6)
Core insulation: PVC
Cores twisted in short lay lengths
Non-woven wrapping
PVC inner sheath
Tinned-copper braiding
PUR outer sheath, grey (RAL 7001)



Additional information

Cores

2, 3, 4, 5, 7, 12, 18, 25, 34, 50
Cross Section (mm)

0.5, 0.75, 1, 1.5, 2.5, 4, 6, 10, 16
Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
