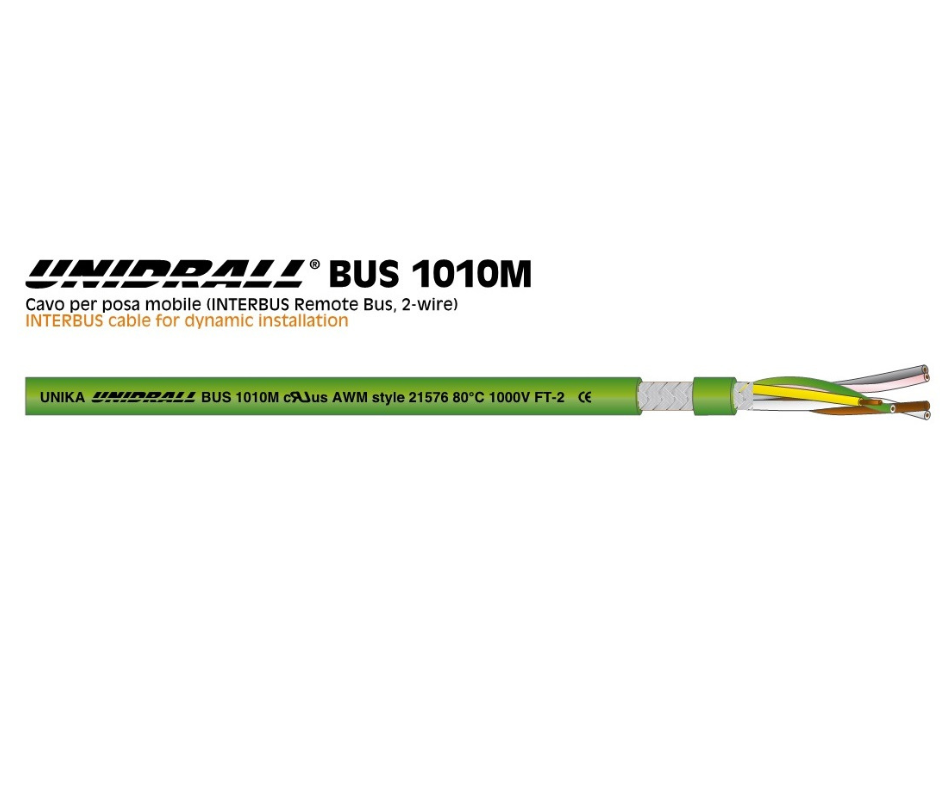

Interbus Cable – Unidrall 1010M -High Flex

Related products

•

  CY High Flex Dynamic Cable PUR | Olflex FD810 CP

  Highly flexible, shielded control cable with PVC insulation, inner sheath and abrasion- and oil-resistant PUR sheath
  ÖLFLEX® CLASSIC FD 810 CP – power and control cable for use in power chains in harsh environmental conditions in EMC critical areas.

  Extra-fine wire strand made of bare copper wires (class 6)
  Core insulation: PVC
  Cores twisted in short lay lengths
  Fleece wrapping
  PVC inner sheath
  Tin-plated copper braiding
  Polyurethane sheath, grey (RAL 7001)

•

  CY Control Flex Cables LSOH | Olflex 135CH

  ÖLFLEX® CLASSIC 135 CH – halogen-free control cable, HFFR, shielded and flexible for various applications, nominal voltage 300/500V

  Fine-wire strand made of bare copper wires
  Core insulation: Halogen-free
  Cores twisted in layers
  Halogen-free plastic foil wrapping
  Tinned-copper braiding
  Sheath made of special halogen-free compound, grey (RAL 7001)

•

  Can Bus Cable-Can Open – Unidrall Bus 1030F -Fixed

  Unidrall Bus 1030F -UL/cUL/Ce/ Desina Approved- UL21179 – 1000V -5°/+80°C – POLY / PVC -CAN Open Cables

  • Unidrall Bus 1030F cables are suitable for CAN ( Control Area Network) and CAN open cable applcations
  • Based upon ISO11898 standards series
  • Cables are designed for Fixed applications only
  • UL/cUL/Ce & Desina approved
  • Options – 2 x 0.25 | 2 x 2x 0.25 | 2 x 2 x 0.34 | 2 x 0.50
•

  Interbus Cable – Unidrall 1010F -Fixed

  Unidrall Bus 1010F-UL/cUL/Ce/ – UL21179 – 1000V -5°/+80°C – Poly / PVC – Interbus Cables

  • These Unidrall Bus 1010F cables are suitable for Interbus remote Bus 2- Wire systems in a fixed application only
  • The cables are UL/cUL/Ce approved
  • 3 x 2 x 0.22
