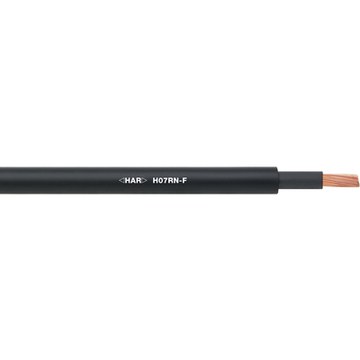

H07-RNF Rubber Cables

Heavy standard construction Rubber Cables
H07RN-F, HAR, power and control cable, rubber, heavy, 450/750 V, industrial and agricultural use, class 5/flexible -25°C to +60°C, oil-resistant, flame-retardant
Medium mechanical stress
Oil-resistant

Categories: , , , , , , Tags: , , , , , , ,
Click to request data sheet

Description

H07-RNF Benefits

For mechanically more demanding applications
1000 V AC protected + fixed installation
Arrangements made of single-core, rubber-sheathed cables H07RN-F can be used for short circuit-proof and short-to-ground-proof installations in accordance with IEC 60364-5-52/HD 60364-5-52/VDE 0100 part 520

Application range

Hand-held and power supply devices according to EN 50565-2
Medium, mechanical stress
Industrial, agricultural use
According to EN 50565-2: Use in dry, damp or wet rooms as well as for fixed installation e.g. on plaster

Product features

Flame-retardant according IEC 60332-1-2
Oil-resistant according to EN 60811-404

Norm references / Approvals

<HAR> H07RN-F design certification according to EN 50525-2-21

Product Make-up

Bare copper stranded wire according to HAR standard
Core insulation: Rubber compound, type EI 4
Outer sheath: Rubber compound type EM 2



Additional information

Cores

2, 3, 4, 5, 7, 12, 19, 25
Cross Section (mm)

1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95
Real Size

50 Meters, 100 Meters, 250 Meters, 500 Meters, Over 500 – Call Us
