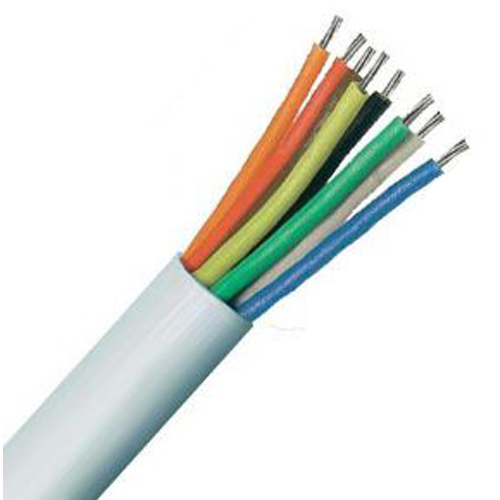

Alarm Cable | Type 2 | 7 / 0.2 | Premium

Alarm cable Type 2 – 7 Strands of 0.2mm
This premium Alarm Cable is generally used for connecting alarm equipment such as sensors, control panels and other low voltage circuits.

Click to request data sheet

Description

Alarm Cables manufactured in accordance to the new BS4737-3.30, introduced in 2015, which has been designed to regulate cable quality and ensure that only BSI recognised cables are used in security installations within the UK.

Under the new standard there will be 3 types of cable available.

Type 1 (Premium Range)
Construction:
Tinned Copper Conductors with colour coded LSZH insulation. LSZH outer jacket.
Performance Requirements:
Maximum resistance value of 100 Ohms/km.

Type 2 (Premium Range)
Construction:
Tinned Copper Conductors with colour coded PVC insulation and a choice of PVC, LSF, PE or DB outer jacket
Performance Requirements:
Maximum resistance value of 100 Ohms/km.

Type 3 (TCCA Range)
Construction:
TCCA Conductors with colour coded PVC insulation and a choice of PVC, LSF, PE or DB outer jacket
Performance Requirements:
Maximum resistance value of 155 Ohms/km.

Additional information

Type

PVC, LSOH

Cores

4, 6, 8, 12

Real Size

100 Meters, 200 Meters, Over 200 – Call Us
