Description

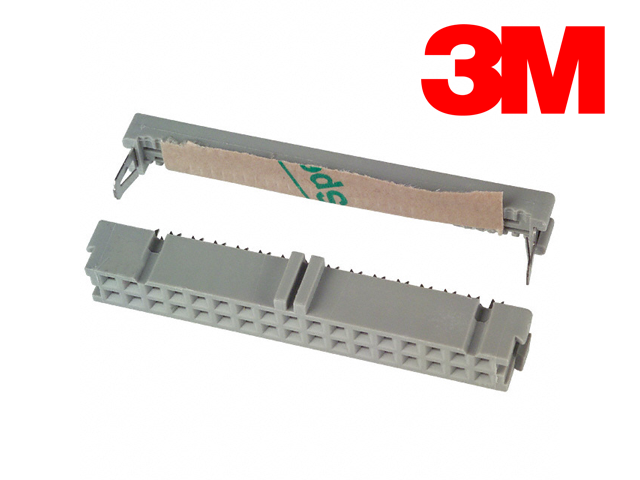

This 3414-6600 is a 34-way 0.100 x 0.100-inch Wire mount Socket for 0.050-inch pitch cable, with gold-plated copper alloy contacts and IDC/IDT termination. This 3000 series socket is glass filled polyester (PBT) insulated, mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. This wire mount socket has open end cover, military polarization with center bump and no strain relief.
Grey colour
Accepts flat cable or discrete wire
UL94V-0 Flammability rating
1A Current rating
1 x 10⁹R at 500VDC Insulation resistance
